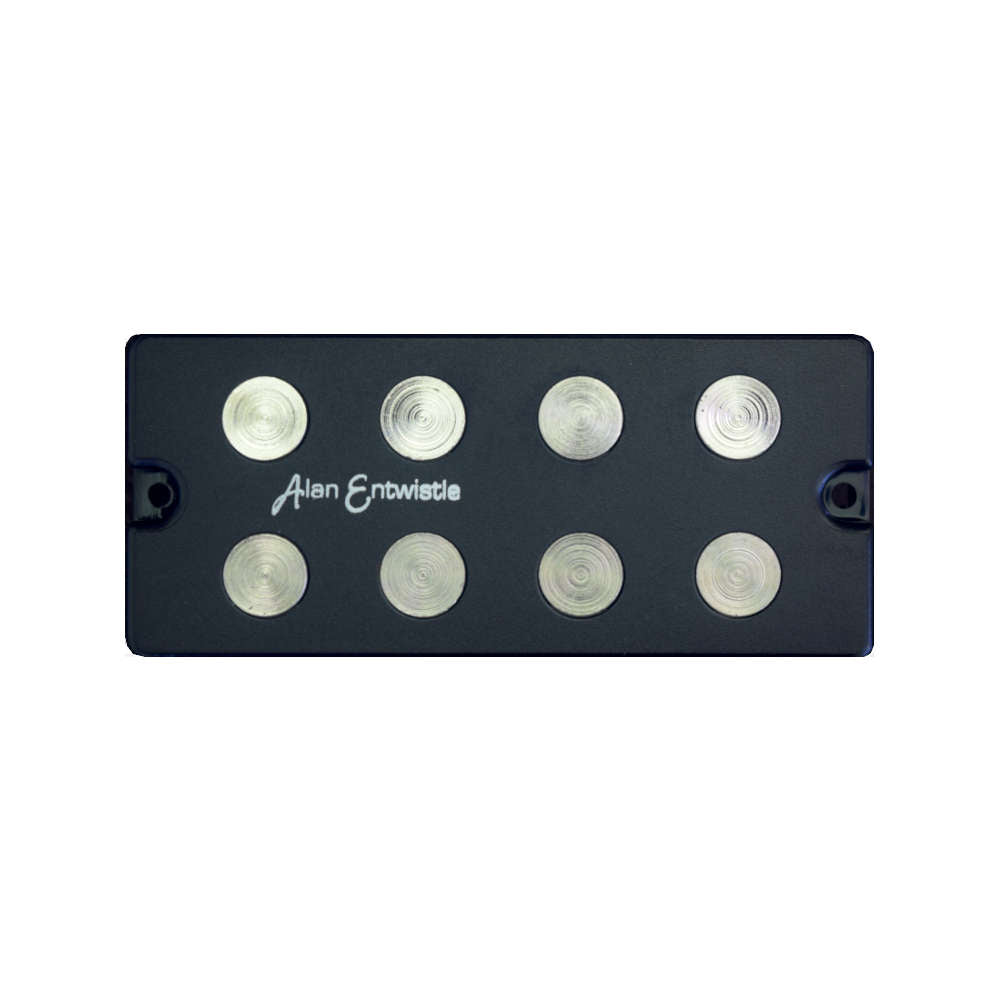

MBN4 (MODERN, 'SOAP BAR')

Soap Bar 4-string bass humbucker pickup fitted with powerful Neodymium magnets. This bass humbucker is designed for powerful bass tones, with a wide dynamic range. The wiring facilitates easy coil-splitting or series/parallel switching.

MBN4 ND (SOAP BAR) BASS HUMBUCKER DIMENSIONS

BRIDGE & NECK (same dimensions but different pole spacing)

L x W x H: 88.5mm x 38mm 20mm

Pole spacing (measured from middle of outer poles):

NECK 56.5mm

BRIDGE 59mm

Fixing hole distance: 82.5mm

(Please allow for slight tolerance)
