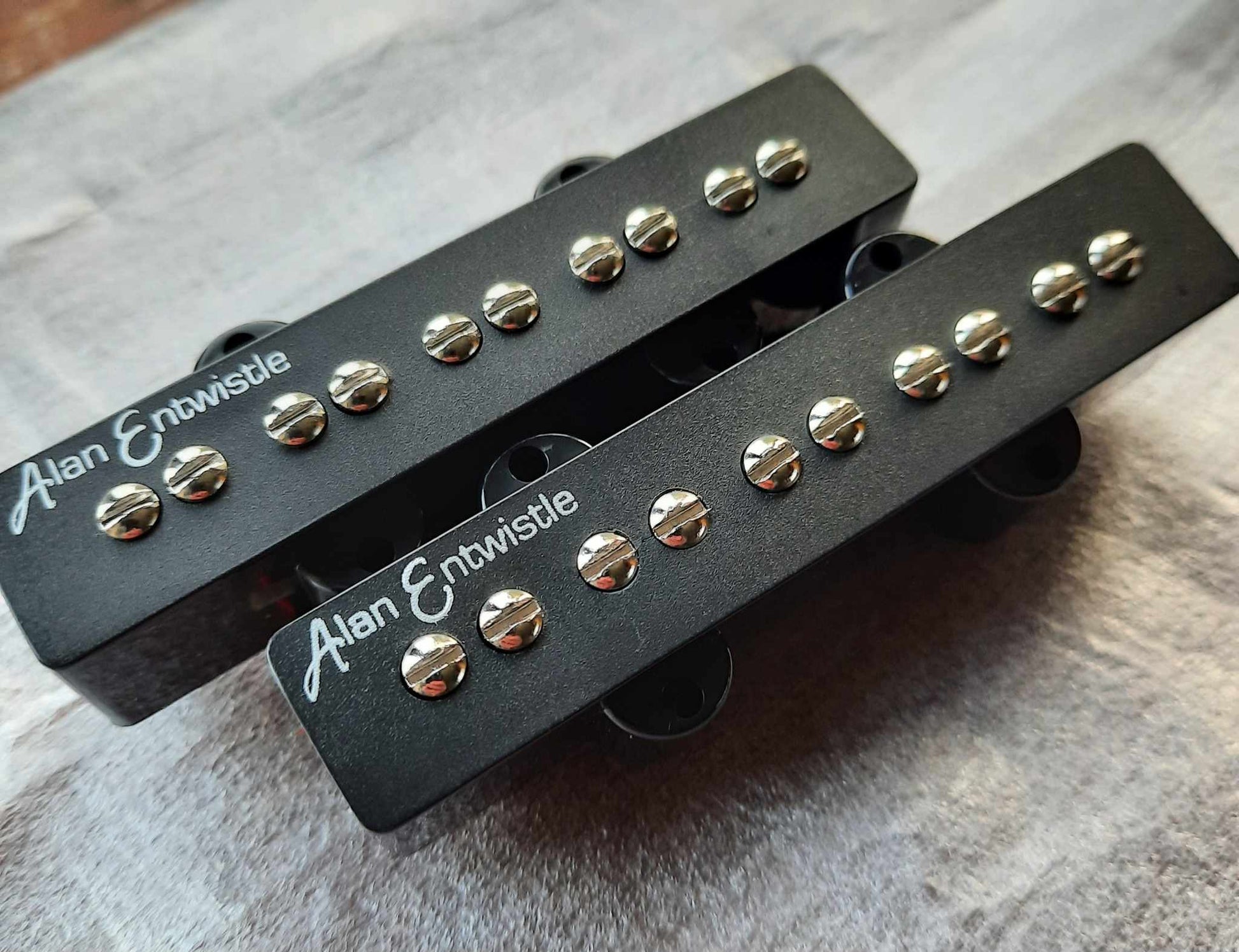

JBX-5 (VINTAGE)

The 5-string version of our classic ‘Jazz bass’ pickup, with Ceramic magnets.

DIMENSIONS (Measured as accurately as possible. Please allow for slight variation)

NECK

91mm x 19mm x 25mm (L x W x H)

Fixing hole spacing on same side 37mm

Fixing hole spacing on opposite sides 23.5mm

POLE SPACING 15.5mm / 61.5mm full

BRIDGE

95mm x 19mm x 25mm (L x W x H)

Fixing hole spacing on same side 41mm

Fixing hole spacing on opposite sides 23.5mm

POLE SPACING 16mm / 65.5mm full

Please note: Each selection is for one pickup. If you require a set you will need to select additionally for each one.

Alan Entwistle pickups are supplied unboxed, with mounting screws and springs (where model-appropriate) and a wiring diagram showing a typical wiring configuration.

We recommend that an experienced guitar technician fits your pickups.
