HVX (MODERN)

HVX (MODERN)

Regular price £25.50 GBP
Regular price Sale price £25.50 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

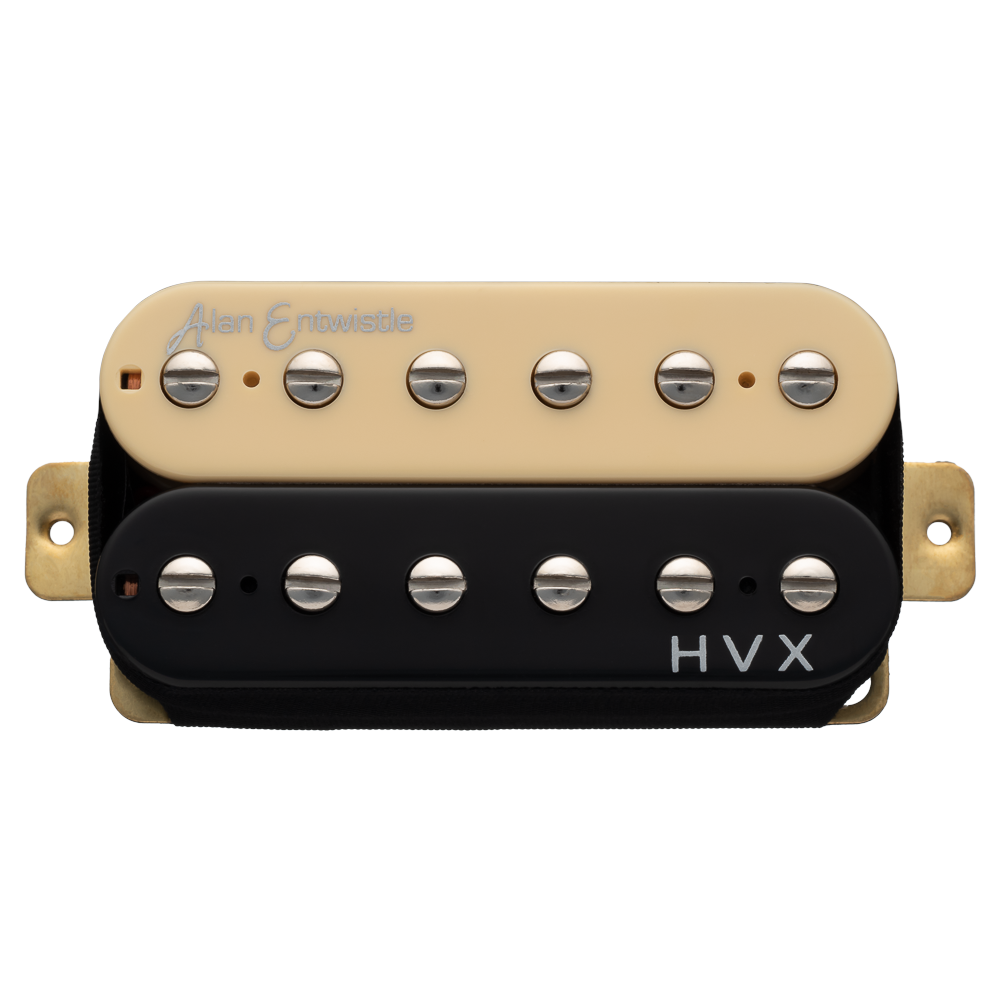

The HVX is a versatile medium output pickup. Think of a hotter PAF, with added top, slightly nasal mids and a tight bottom end. Basically, an over-wound HV58 (like the HV58 PLUS) but with a Ceramic magnet to give the different tonal quality.

Performs well with coil splitting and parallel wiring. It also excels when wired out of phase with another HVX.

 DC Resistance

Magnet type
Pole spacing

Potting
Colour options
12K Bridge
12K Neck
Ceramic
52.5mm Bridge
50mm Neck
Wax potted
Black / Zebra



Please note: Each selection is for one pickup. If you require a set you will need to select additionally for each one.

Alan Entwistle pickups are supplied unboxed and with mounting screws and springs (where model-appropriate). All our humbucking pickups are wired with the ability to be coil-split so a wiring diagram is provided that shows how to wire for 'standard non-split', 'simple split', 'partial phasing' and 'series/parallel' configurations.

We recommend that an experienced guitar technician fits your pickups.
