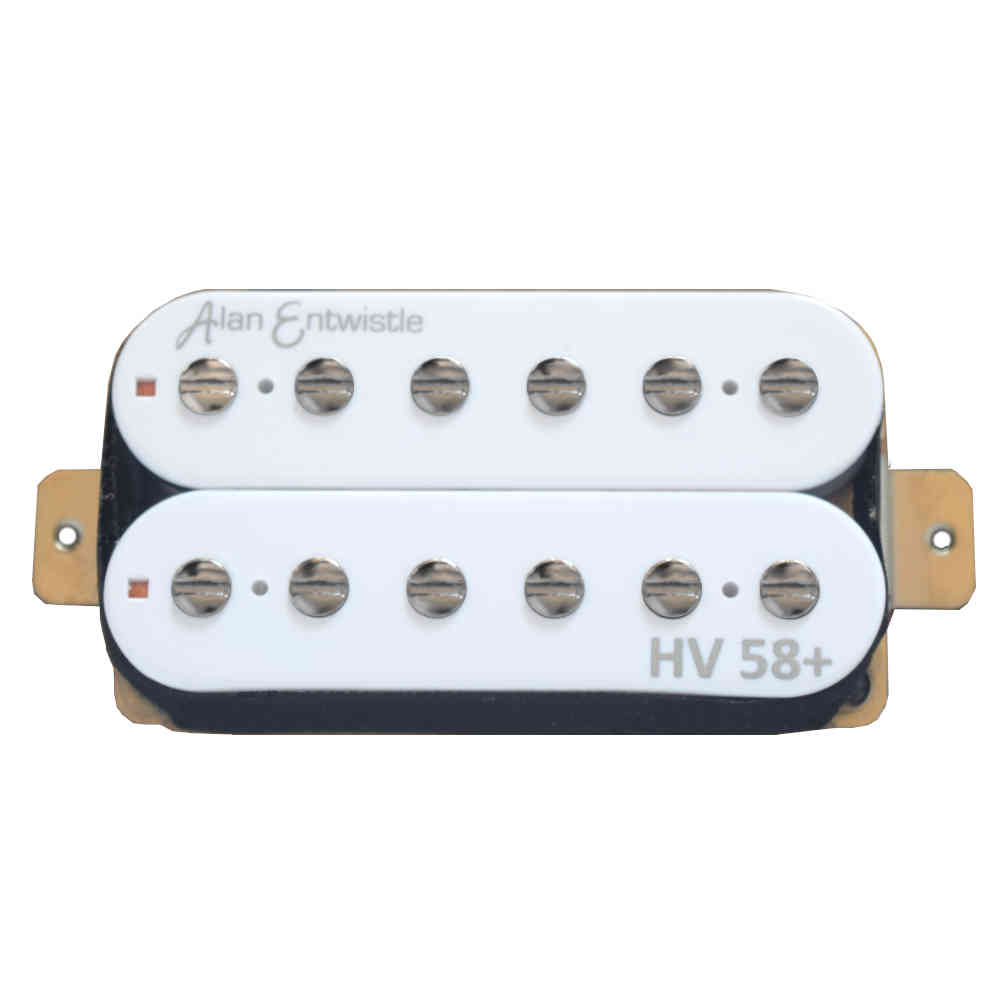

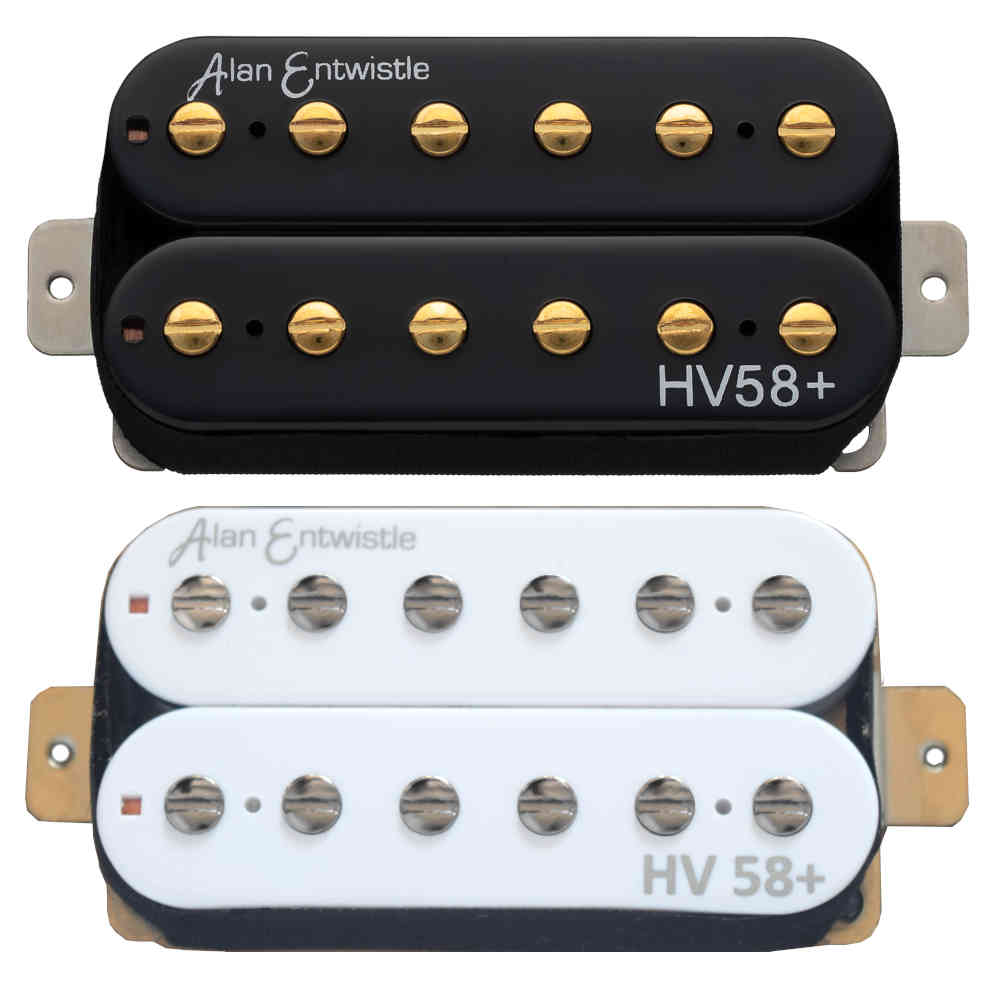

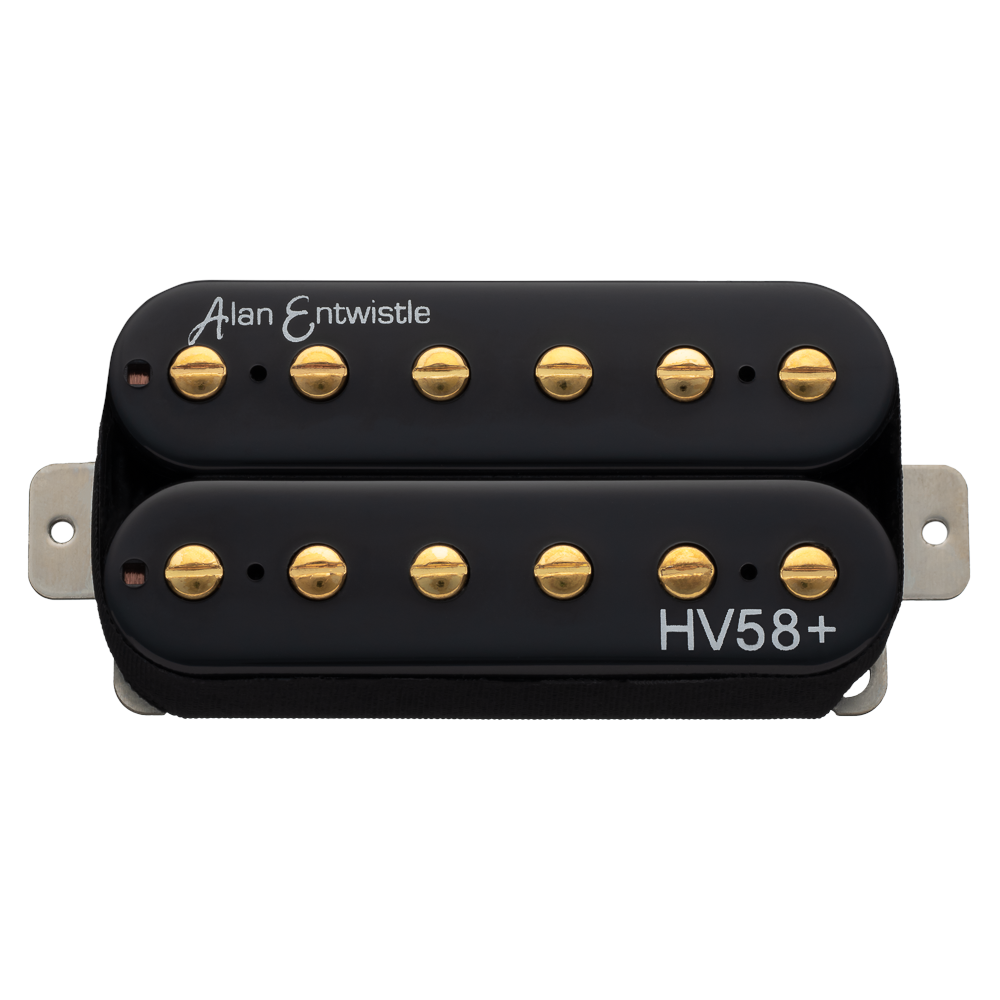

HV58 PLUS (HOT, 'DARK GOLD' OR 'WHITE GOLD' COLOURED POLES)

HV58 PLUS (HOT, 'DARK GOLD' OR 'WHITE GOLD' COLOURED POLES)

Regular price £38.50 GBP
Regular price Sale price £38.50 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

Our overwound version of the classic late '50s, vintage spec humbucker, made with Alnico V magnetics, enamel coated winding wire, scatter-wound coils, and hard Nickel pole-pieces. Great for coil splitting. They are overwound, so expect more power, and more warmth than the standard version. The pickups are wax potted, but unlike modern pickup designs they are not vacuum processed as this reduces the natural gaps in the windings. These gaps are partly responsible the for the vintage flavour and response.

Our colour options currently feature either 'dark gold-coloured' or 'white gold-coloured' adjustable pole pieces! Please choose the desired colour in the shop listing. Please note: The 'white gold-coloured' poles are a very subtle gold, but not quite nickel-coloured in appearance. Send a message if unsure.

 DC Resistance

Magnet type
Pole spacing

Potting
Colour options
12.5K Bridge
9.5K Neck
Alnico V
52.5mm Bridge
50mm Neck
Wax potted
Zebra/Black/Ivory



Please note: Each selection is for one pickup. If you require a set you will need to select additionally for each one.

Alan Entwistle pickups are supplied unboxed and with mounting screws and springs (where model-appropriate). All our humbucking pickups are wired with the ability to be coil-split so a wiring diagram is provided that shows how to wire for 'standard non-split', 'simple split', 'partial phasing' and 'series/parallel' configurations.

We recommend that an experienced guitar technician fits your pickups.
