PICKUP RINGS (NASHVILLE ND / HV MINI / MH4 ONLY)

PICKUP RINGS (NASHVILLE ND / HV MINI / MH4 ONLY)

£6.99 GBP
£6.99 GBP
Sale Sold out
Shipping calculated at checkout.

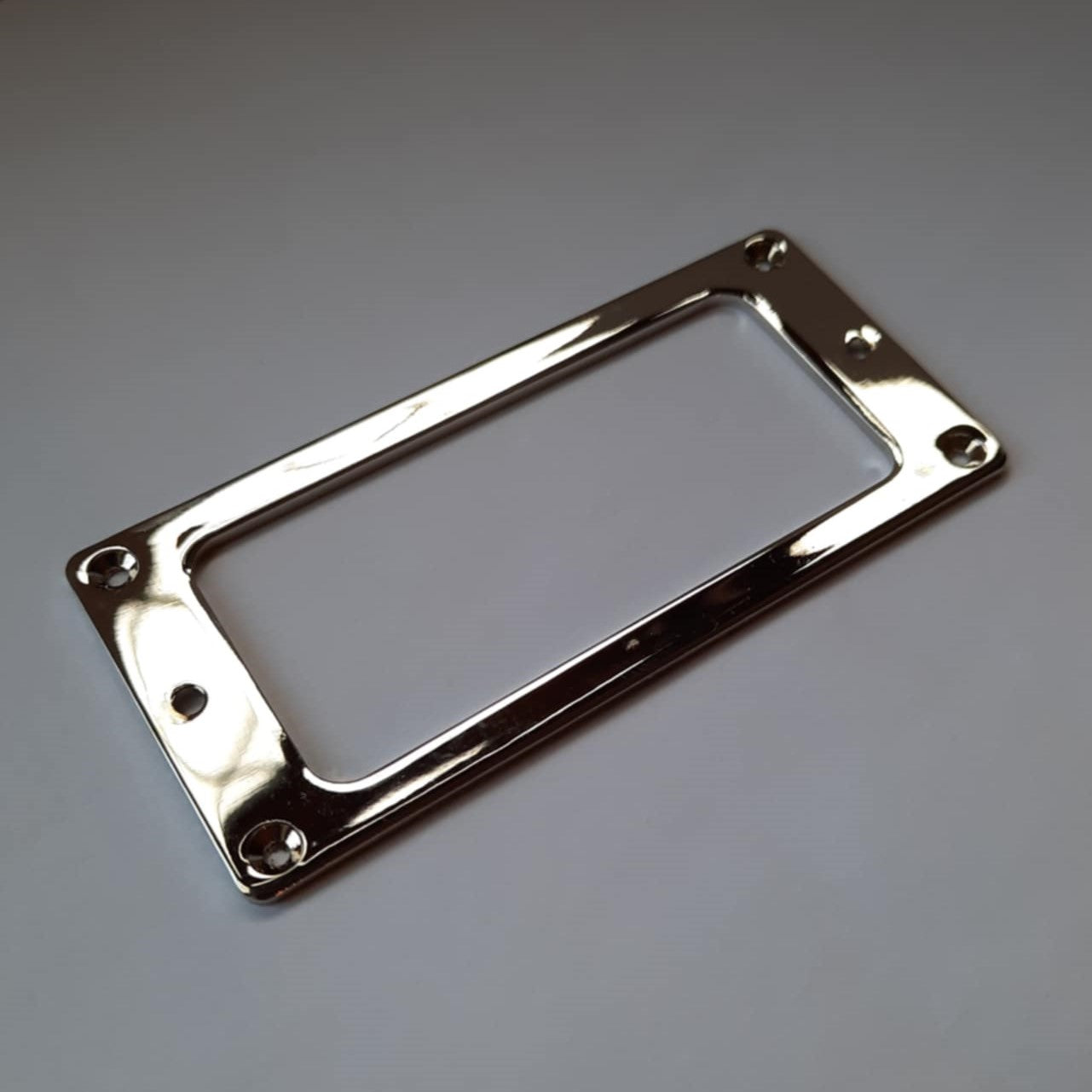

Choose a Nickel-coloured, metal pickup ring / surround for either the Nashville ND humbucker, HV MINI humbucker or MH4 bas pickup. See individual pickup listings for pickup dimensions. Each pickup ring fixes to the guitar body via four screw holes (screws not included).

Nashville ND pickup ring is NOT compatible with the Nashville Classic guitar pickups. The Nashville ND pickups are not mounted through the pickup directly to the guitar body.

Please ensure compatibility with your guitar pickup before ordering. Contact us if you are not sure.


GET SECOND PICKUP RING FOR £5 WHEN PURCHASING TWO TOGETHER!

Please note, this listing is for a single pickup ring and does not include pickup ring mounting screws.

NASHVILLE ND & MH4 Surround dimensions (allow slight tolerance):

L x W x H (external)
94mm x 44mm x 2mm

L x W x H (internal)
72.5mm x 32.5mm x 2mm

Mounting screw distance
Horizontal 85mm
Vertical 36mm
Diagonal 92.5mm
HV MINI Surround dimensions (allow slight tolerance):

L x W x H (external)
87mm x 38.5mm x 2mm

L x W x H (internal)
69mm x 29mm x 2mm

Mounting screw distance
Horizontal 79.5mm
Vertical 30.5mm
Diagonal 84.5mm


We recommend that an experienced guitar technician fits your pickups surrounds.
